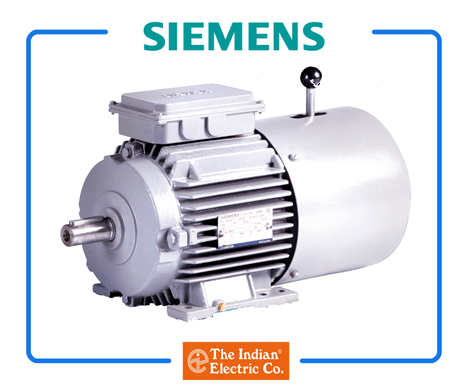

Siemens Brake Motors

Also available in the following specialty

VPI / VFD Suitable
Manual release handle

Warranty: Motors are covered by warranty under proper use, for faulty material or workmanship for 12 months from the date of commissioning or 18 months from the date of dispatch whichever is earlier.

Features / Specification
( As Per IEC:60034-1 )

KW / HP	0.18 To 45 KW / (0.25 To 60 HP)
RPM / Pole	3000 RPM (2 Pole) 1500 RPM (4 Pole) 1000 RPM (6 Pole)
Frame Size	63 To 225
Mounting	B3 Foot Mounted B5 Flange Mounted B35 Foot cum Flange Mounted
Standard	IE2
Ambient Temperature	50 °C
Body Enclosure	Cast Iron
Duty	S1 / S4 ( Crane Duty Motors Available )
Enclosure	TEFC
Insulation class	F Class
IP degree of protection	IP55
Phase	3 Phase Motor
Terminal Box Location	TOP
Voltage	415 V +-10%
Frequency	50 Hz +-5%

GET A QUOTE

Description:

We The Indian Electric Company are the Authorised Dealer of Siemens Brake Motors having range from 0.18 KW to 45 KW & 0.25 HP to 60 HP with EMCO DC Brakes with 190 volt. This motors are 3 phase with 415 volt & Frequency of 50 Hz. Siemens Brake motors are available in 3000 RPM, 1500 RPM, 1000 RPM with respect to and 2 Pole, 4 Pole and 6 Pole with cast iron body. This motors are compatible with S1 & S4 duty (Crane Duty Motors) as optional. Available Frame sizes are from 63 to 225 frame. Mounting options are B3 (Foot Mounting) B5 (Flange Mounting), B35 (Foot cum Flange Mounting) available with Terminal Box Position at TOP Side. Siemens brake motors are available in insulation class F & temperature rise limited to Class B with IP 55 degree of protection. Siemens brake motors are also available with specialties of VPI / VFD Suitable and Manual release handle.

Application:

Application of AC Three Phase Brake Motors Are in Lifts, Hoists, Conveyors and Other Applications Where the Frequency of Switching the Brake On-Off is Very Low.
1. Heavy Duty Loads.
2. Lifting Applications (i.e. Elevator)
3. Cranes (Lifting Bridge Movement)
4. Saws, Conveyors
5. Textile Machinery
6. Rolling Mills
7. Cranes & Hoists
8. Material Handling Equipment
9. Machine Tools

Served Area:

Top 10 Selling Siemens Brake Motors:

Motor Name	PRICE & AVAILABILITY
SIEMENS MAKE BRAKE MOTOR (IE2) 0.75 KW 1 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE.	ENQUIRE NOW
SIEMENS MAKE BRAKE MOTOR (IE2) 0.75 KW 1 HP, 1000 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE.	ENQUIRE NOW
SIEMENS MAKE BRAKE MOTOR (IE2) 1.5 KW 2 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE.	ENQUIRE NOW
SIEMENS MAKE BRAKE MOTOR (IE2) 2.2 KW 3 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE.	ENQUIRE NOW
SIEMENS MAKE BRAKE MOTOR (IE2) 3.7 KW 5 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE.	ENQUIRE NOW
SIEMENS MAKE BRAKE MOTOR (IE2) 3.7 KW 5 HP, 1000 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE.	ENQUIRE NOW
SIEMENS MAKE BRAKE MOTOR (IE2) 5.5 KW 7.5 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE.	ENQUIRE NOW
SIEMENS MAKE BRAKE MOTOR (IE2) 5.5 KW 7.5 HP, 1000 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE.	ENQUIRE NOW
SIEMENS MAKE BRAKE MOTOR (IE2) 7.5 KW 10 HP, 1000 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE.	ENQUIRE NOW
SIEMENS MAKE BRAKE MOTOR (IE2) 11 KW 15 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE.	ENQUIRE NOW
