Also available in the following specialty
- VPI / VFD Suitable
- Double Shaft Extension
- T.B Location: LHS / TOP
Features / Specification
( AS PER IEC:60034-1 )
| KW / HP | 1.1 To 116 KW / (0.5 To 156 HP) |
|---|---|
| RPM / Pole | 1000 RPM (6 Pole) 750 RPM (8 Pole) 600 RPM (10 Pole) |
| Frame Size | 112 To 315 |
| Mounting | B3 Foot Mounted B5 Flange Mounted B35 Foot cum Flange Mounted |
| Standard | IE1 |
| Ambient Temperature | 50 °C |
| Body Enclosure | Cast Iron | Duty | S3 / S4 / S5 Intermittent |
| CDF | 25 / 40/ 60 |
| Starts/hr | 60 / 150 / 300 |
| Enclosure | TEFC |
| Insulation class | F Class |
| IP degree of protection | IP55 |
| Phase | 3 Phase Motor | Terminal Box Location | RHS |
| Voltage | 415 V +-10% |
| Frequency | 50 Hz +-5% |
Description:

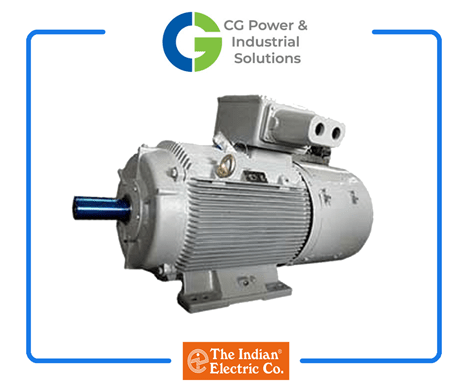

We The Indian Electric Company are the Authorised Dealer of CG Power (Crompton Greaves) Crane Duty Slipring Motors having range from 1.1 KW to 116 KW & 0.5 HP to 156 HP. This motors are 3 phase with 415 volt & Frequency of 50 Hz. Crompton Crane Duty Slipring motors are available in 1000 RPM, 750 RPM & 600 RPM with respect to and 6 Pole, 8 Pole & 10 Pole with cast iron body. This motors are compatible with S4, S3 & S5 duty with CDF 25 / 40 / 60 & 60 / 150 / 300 Starts per hour. Available Frame sizes are from 63 to 255 frame. Mounting options are B3 (Foot Mounting) B5 (Flange Mounting), B35 (Foot cum Flange Mounting) available with Terminal Box Position at RHS Side. Crompton Crane Duty Slipring motors are available in insulation class F & temperature rise limited to Class B with IP 55 degree of protection. This motors are also available with specialties i.e. VPI / VFD Suitable, Double Shaft Extension, T.B Location: LHS / TOP.
Application:
Cranes & Hoists, Other Material Handling Equipment's, Weirs & Sluices, All types of Lifts, Rolling Mills.
Popular Tags:
Crompton Greaves Crane DutySlipring Motors Catalogue | Crompton Greaves Crane Duty Slipring Motors Dealers | Crompton Greaves Crane Duty Slipring Motors Distributors | Crompton Greaves Crane Duty Slipring Motors Authorised Dealer In Pune | Crompton Greaves Crane Duty Slipring Motors Price List | Crompton Greaves Crane Duty Slipring Motors Price | Crompton Greaves Crane Duty Slipring Motors Dealers In Mumbai | Crompton Crane Duty Slipring Motors Price List 2020 pdf
Served Area:
All India : Ahmedabad | Ahmednagar | Akola | Ambarnath | Amravati | Ankleshwar | Aurangabad | Baramati | Beed | Bengaluru | Bhadravati | Bharuch | Bhiwandi | Bhopal | Bokaro | Chandrapur | Chandrapur | Chennai | Cochin | Coimbatore | Hyderabad | Ichalkaranji | Indore | Indore | Jaipur | Jalgaon | Jalna | Jodhpur | Kalyan | Kolhapur | Kolkata | Latur | Mumbai | Nagpur | Nanded | Nashik | Navi Mumbai | Panvel | Pimpri Chinchwad | Pune | Rajkot | Sangli | Satara | Solapur | Surat | Thane | Tiruchirappalli | Ulhasnagar | Vadodara | Vasai | Visakhapatnam
Top 10 Selling CG Power (Crompton Greaves) Crane Duty Slipring Motors:
| Motor Name | PRICE & AVAILABILITY |
|---|---|
| CROMPTON MAKE CRANE DUTY SLIPRING MOTOR 1.8 KW 2.41 HP, 1000 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAKE CRANE DUTY SLIPRING MOTOR 1.8 KW 2.41 HP, 1000 RPM, B5 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAKE CRANE DUTY SLIPRING MOTOR 1.8 KW 2.41 HP, 1000 RPM, B35 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAKE CRANE DUTY SLIPRING MOTOR 2.6 KW 3.5 HP, 1000 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAKE CRANE DUTY SLIPRING MOTOR 2.6 KW 3.5 HP, 1000 RPM, B5 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAKE CRANE DUTY SLIPRING MOTOR 2.6 KW 3.5 HP, 1000 RPM, B35 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAKE CRANE DUTY SLIPRING MOTOR 4.5 KW 6.03 HP, 1000 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAKE CRANE DUTY SLIPRING MOTOR 4.5 KW 6.03 HP, 1000 RPM, B5 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAKE CRANE DUTY SLIPRING MOTOR 4.5 KW 6.03 HP, 1000 RPM, B35 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAKE CRANE DUTY SLIPRING MOTOR 6.7 KW 9 HP, 1000 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
