Also available in the following specialty
- VPI / VFD Suitable
- Thermisters
- Insulated Bearing
- Roller Bearing
- Space Heater
- Forced cooling
- T.B Location: LHS / RHS
- Motors with 690V D as Grid Supplied Standard Voltage
Features / Specification
( As Per IS:12615 / IEC:60034-1 )
| KW / HP | 0.18 To 45 KW / (0.25 To 60 HP) |
|---|---|
| RPM / Pole | 3000 RPM (2 Pole) 1500 RPM (4 Pole) 1000 RPM (6 Pole) 750 RPM (8 Pole) |
| Frame Size | 355 To 500 |
| Mounting | B3 Foot Mounted B5 Flange Mounted B35 Foot cum Flange Mounted |
| Standard | 1LA8 - 1PQ8 |
| Ambient Temperature | 45 °C |
| Body Enclosure | Cast Iron |
| Duty | S1 |
| Enclosure | TEFC |
| Insulation class | F Class |
| IP degree of protection | IP55 |
| Phase | 3 Phase Motor |
| Terminal Box Location | TOP |
| Voltage | 415 V +-10% |
| Frequency | 50 Hz +-5% |
Description:

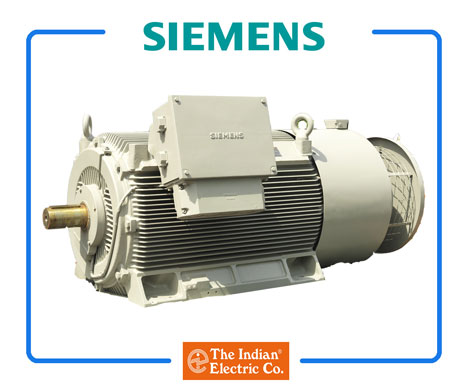

We The Indian Electric Co. are Authorised Dealer of Siemens 1PQ8 Force Cooling Converter Duty Motors having range from 355 KW to 1250 KW or 475 HP to 1675 HP. This motors are 3 phase with 415 volt & Frequency of 50 Hz. Siemens 1PQ8 Force Cooling Converter Duty Motors are available in 3000 RPM, 1500 RPM, 1000 RPM and 750 RPM with respect to and 2 Pole, 4 Pole, 6 Pole and 8 Pole with cast iron body. This motors are compatible with S1 duty and with IE2 & IE3 efficiency. Available Frame sizes are from 355 to 500 frame. Mounting options are B3 (Foot Mounting) B5 (Flange Mounting), B35 (Foot cum Flange Mounting) available with Terminal Box Position at RHS Side. Siemens 1PQ8 Force Cooling Converter Duty Motors are available in insulation class F & temperature rise limited to Class B with IP 55 degree of protection. This motors are also available with specialties i.e. VPI Suitable, Double Shaft, T.B Location: LHS / TOP.
Application:
1. Compressors
2. Conveyors
3. Positive Displacement Pumps
4. Mixers
5. Hoists
Popular Tags:
Siemens 1PQ8 Force Cooling Converter Duty Motors | Siemens 1PQ8 Force Cooling Converter Duty Motor Catalogue | Siemens 1PQ8 Force Cooling Converter Duty Motor Dealers | Siemens 1PQ8 Force Cooling Converter Duty Motor Distributors | Siemens 1PQ8 Force Cooling Converter Duty Motor Authorised Dealer in Pune | Siemens 1PQ8 Force Cooling Converter Duty Motor Price List | Siemens 1PQ8 Force Cooling Converter Duty Motor Catalogue Pdf | Siemens 1PQ8 Force Cooling Converter Duty Motor Efficiency Table | Siemens 1PQ8 Force Cooling Converter Duty Motor Price | Siemens 1PQ8 Force Cooling Converter Duty Motor Manual
Served Area:
All India : Ahmedabad | Ahmednagar | Akola | Ambarnath | Amravati | Ankleshwar | Aurangabad | Baramati | Beed | Bengaluru | Bhadravati | Bharuch | Bhiwandi | Bhopal | Bokaro | Chandrapur | Chandrapur | Chennai | Cochin | Coimbatore | Hyderabad | Ichalkaranji | Indore | Indore | Jaipur | Jalgaon | Jalna | Jodhpur | Kalyan | Kolhapur | Kolkata | Latur | Mumbai | Nagpur | Nanded | Nashik | Navi Mumbai | Panvel | Pimpri Chinchwad | Pune | Rajkot | Sangli | Satara | Solapur | Surat | Thane | Tiruchirappalli | Ulhasnagar | Vadodara | Vasai | Visakhapatnam
Top 10 Selling Siemens 1PQ8 Force Cooling (Converter Duty Motors):
| Motor Name | PRICE & AVAILABILITY |
|---|---|
| SIEMENS MAKE 1PQ8 FORCE COOLING MOTOR (IE2) 250 KW 335 HP, 750 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| SIEMENS MAKE 1PQ8 FORCE COOLING MOTOR (IE2) 315 KW 422 HP, 1000 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| SIEMENS MAKE 1PQ8 FORCE COOLING MOTOR (IE2) 315 KW 422 HP, 750 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| SIEMENS MAKE 1PQ8 FORCE COOLING MOTOR (IE2) 355 KW 475 HP, 3000 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| SIEMENS MAKE 1PQ8 FORCE COOLING MOTOR (IE2) 355 KW 475 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| SIEMENS MAKE 1PQ8 FORCE COOLING MOTOR (IE2) 355 KW 475 HP, 750 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| SIEMENS MAKE 1PQ8 FORCE COOLING MOTOR (IE2) 400 KW 535 HP, 3000 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| SIEMENS MAKE 1PQ8 FORCE COOLING MOTOR (IE2) 400 KW 535 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| SIEMENS MAKE 1PQ8 FORCE COOLING MOTOR (IE2) 400 KW 535 HP, 1000 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| SIEMENS MAKE 1PQ8 FORCE COOLING MOTOR (IE2) 400 KW 535 HP, 750 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
