Also available in the following specialty
- VPI / VFD Suitable
- T.B Location: TOP
- Motors With Gas Group I-C, II-C can be offered on request
Features / Specification
( AS PER IS:12615 / IEC:60034-1 )
| KW / HP | 0.37 To 400 KW / (0.5 To 535 HP) |
|---|---|
| RPM / Pole | 3000 RPM (2 Pole) 1500 RPM (4 Pole) 1000 RPM (6 Pole) 750 RPM (8 Pole) |
| Frame Size | 80 To 400 |
| Mounting | B3 Foot Mounted B5 Flange Mounted B35 Foot Cum Flange Mounted |
| Standard | IE2 / IE3 |
| Ambient Temperature | 45 °C |
| Body Enclosure | Cast Iron |
| Temprature | 50 °C |
| Duty | S1 |
| Enclosure | TEFC |
| Hazardous Area | Gas group IIA & IIB |
| Insulation class | F Class |
| IP degree of protection | IP55 |
| Phase | 3 Phase Motor |
| Terminal Box Location | RHS / Top |
| Voltage | 415 V +-10% |
| Frequency | 50 Hz +-5% |
Description:

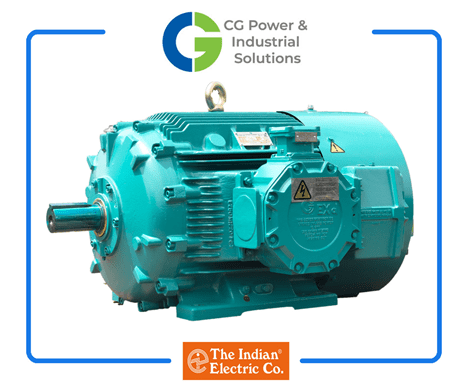

We The Indian Electric Company are the Authorised Dealer of CG Power (Crompton Greaves) Flame Proof Motors having range from 0.37 KW to 400 KW & 0.5 HP to 535 HP. This motors are 3 phase with 415 volt & Frequency of 50 Hz. Crompton Flame Proof Motors are available in 3000 RPM, 1500 RPM, 1000 RPM, 750 RPM with respect to and 2 Pole, 4 Pole, 6 Pole & 8 Pole with cast iron body. This motors are compatible with Gas group IIA & IIB. Available Frame sizes are from 80 to 400 frame. Mounting options are B3 (Foot Mounting) B5 (Flange Mounting), B35 (Foot cum Flange Mounting) available with Terminal Box Position at RHS or Top Side. Crompton Flame Proof motors are available in insulation class F & temperature rise limited to Class B with IP 55 degree of protection. This motors are also available with specialties i.e. VPI / VFD Suitable, T.B Location: LHS / TOP, Motors suitable for Gas Group I-C, II-C can be offered on request.
Application:
These series of motors are capable of withstanding pressure during an internal explosion so that such an explosion does not vent into the external atmosphere which couldalso be explosive.They are also designed to prevent the occurrence of sparks, arcs, or hot spots in service, which avoids any further risk of explosion.This motors are compatible with Gas group IIA, IIB, I-C and II-C.
1. Chemical and Petrochemical Industry.
2. Production of Mineral Oil and Gas.
3. Coal Mines.
4. Oil Mines & Rigs.
5. Agro Chemical and Fertilizers.
6. Solvent Extraction Plants.
7. Paint and Varnish Industry.
8. LPG Bottling Industries.
9. Blowers/ Fans / Pumps.
10. Drugs and Pharmaceuticals Industry.
Applications – All Types of Pump, Agitators, Blower, Vacuum Pumps, Mixer, Reactors, Centrifuges, Conveyors, Crane and Hoist.
Popular Tags:
Crompton Greaves Flame Proof Motors Catalogue | Crompton Greaves Flame Proof Motors Distributors | Crompton Greaves Flame Proof Motors Authorised Dealer In Pune | Crompton Greaves Flame Proof Motors Price List | Crompton Greaves Flame Proof Motors Price | Crompton Greaves Flame Proof Motors Dealers In Mumbai | Crompton Motor Price List 2020 pdf
Served Area:
All India : Ahmedabad | Ahmednagar | Akola | Ambarnath | Amravati | Ankleshwar | Aurangabad | Baramati | Beed | Bengaluru | Bhadravati | Bharuch | Bhiwandi | Bhopal | Bokaro | Chandrapur | Chandrapur | Chennai | Cochin | Coimbatore | Hyderabad | Ichalkaranji | Indore | Indore | Jaipur | Jalgaon | Jalna | Jodhpur | Kalyan | Kolhapur | Kolkata | Latur | Mumbai | Nagpur | Nanded | Nashik | Navi Mumbai | Panvel | Pimpri Chinchwad | Pune | Rajkot | Sangli | Satara | Solapur | Surat | Thane | Tiruchirappalli | Ulhasnagar | Vadodara | Vasai | Visakhapatnam
Top 10 Selling CG Power (Crompton Greaves) Flame Proof Motors:
| Motor Name | PRICE & AVAILABILITY |
|---|---|
| CROMPTON MAK FLAME PROOF MOTOR, 1.5 KW 2 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAK FLAME PROOF MOTOR, 2.2 KW 3 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAK FLAME PROOF MOTOR, 3.7 KW 5 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAK FLAME PROOF MOTOR, 5.5 KW 7.5 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAK FLAME PROOF MOTOR, 7.5 KW 10 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAK FLAME PROOF MOTOR, 9.3 KW 12.5 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAK FLAME PROOF MOTOR, 11 KW 15 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAK FLAME PROOF MOTOR, 15 KW 20 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAK FLAME PROOF MOTOR, 18.5 KW 25 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAK FLAME PROOF MOTOR, 22 KW 30 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
