Also available in the following specialty
- VPI / VFD Suitable
- Double Shaft Extension
- T.B Location: LHS / TOP
Features / Specification
( AS PER IEC:60034-1 )
| KW / HP | 0.25 To 45 KW / (0.33 To 60 HP) |
|---|---|
| RPM / Pole | 1500 RPM (8 Pole) 1000 RPM (8 Pole) 750 RPM (8 Pole) |
| Frame Size | 63 To 255 |
| Mounting | B3 Foot Mounted B5 Flange Mounted B35 Foot cum Flange Mounted |
| Standard | IE1 |
| Body Enclosure | Cast Iron |
| Duty | S4 / S3 |
| CDF | 25 / 40 / 60 |
| Starts / HR | 60 / 150 / 300 |
| Enclosure | TEFC |
| Insulation class | F Class |
| IP degree of protection | IP55 |
| Phase | 3 Phase Motor | Terminal Box Location | RHS |
| Voltage | 415 V +-10% |
| Frequency | 50 Hz +-5% |
Description:

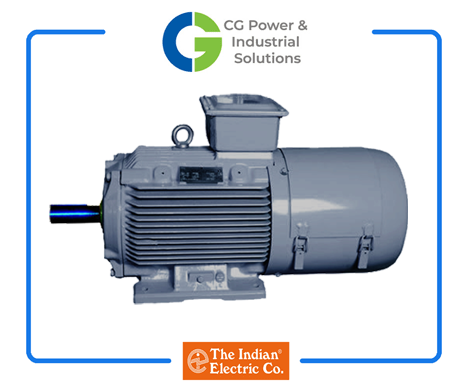

We The Indian Electric Company are the Authorised Dealer of CG Power (Crompton Greaves) Crane Duty Squirrel Cage Motors having range from 0.25 KW to 45 KW & 0.33 HP to 60 HP. This motors are 3 phase with 415 volt & Frequency of 50 Hz. Crompton Crane Duty Squirrel Cage motors are available in 1500 RPM, 1000 RPM & 750 RPM with respect to 4 Pole and 6 Pole & 8 Pole with cast iron body. This motors are compatible with S4 & S3 duty with CDF 25 / 40 / 60 & 60 / 150 / 300 Starts per hour. Available Frame sizes are from 63 to 255 frame. Mounting options are B3 (Foot Mounting) B5 (Flange Mounting), B35 (Foot cum Flange Mounting) available with Terminal Box Position at RHS Side. Crompton Crane Duty Squirrel Cage motors are available in insulation class F & temperature rise limited to Class B with IP 55 degree of protection. This motors are also available with specialties i.e. VPI / VFD Suitable, Double Shaft Extension, T.B Location: LHS / TOP.
Application:
The Crane Motors Are Duty Type Rated For Developing High Starting Torque With Low Starting Current. The Motors Are Designed To Withstand Stresses Due To Frequent Starts/Stops And Reversals. Also, A Rapid Acceleration Is Achieved By High Pull Out Torque/Rotor Inertia Ratio.
1. Crane Duty and Hoist Duty Applications Including LT & CT Drives.
2. Material Handling.
3. Weirs and Sluices.
4. Lift Duty.
5. Auxiliary Motors in Rolling Mills.
6. Material Handling Equipment.
7. Conveyors
8. Loader / Unloader
9. Winch
Popular Tags:
Crompton Greaves Crane Duty Squirrel Cage Motors Catalogue | Crompton Greaves Crane Duty Squirrel Cage Motors Dealers | Crompton Greaves Crane Duty Squirrel Cage Motors Distributors | Crompton Greaves Crane Duty Squirrel Cage Motors Authorised Dealer In Pune | Crompton Greaves Crane Duty Squirrel Cage Motors Price List | Crompton Greaves Crane Duty Squirrel Cage Motors Price | Crompton Greaves Crane Duty Squirrel Cage Motors Dealers In Mumbai | Crompton Crane Duty Squirrel Cage Motors Price List 2020 pdf
Served Area:
All India : Ahmedabad | Ahmednagar | Akola | Ambarnath | Amravati | Ankleshwar | Aurangabad | Baramati | Beed | Bengaluru | Bhadravati | Bharuch | Bhiwandi | Bhopal | Bokaro | Chandrapur | Chandrapur | Chennai | Cochin | Coimbatore | Hyderabad | Ichalkaranji | Indore | Indore | Jaipur | Jalgaon | Jalna | Jodhpur | Kalyan | Kolhapur | Kolkata | Latur | Mumbai | Nagpur | Nanded | Nashik | Navi Mumbai | Panvel | Pimpri Chinchwad | Pune | Rajkot | Sangli | Satara | Solapur | Surat | Thane | Tiruchirappalli | Ulhasnagar | Vadodara | Vasai | Visakhapatnam
Top 10 Selling CG Power (Crompton Greaves) Crane Duty Sq, Cage Motors:
| Motor Name | PRICE & AVAILABILITY |
|---|---|
| CROMPTON MAKE CRANE DUTY MOTOR 5.5 KW 7.5 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAKE CRANE DUTY MOTOR 7.5 KW 10 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAKE CRANE DUTY MOTOR 9.3 KW 12.5 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAKE CRANE DUTY MOTOR 11 KW 15 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAKE CRANE DUTY MOTOR 15 KW 20 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAKE CRANE DUTY MOTOR 18.5 KW 25 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAKE CRANE DUTY MOTOR 22 KW 30 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAKE CRANE DUTY MOTOR 27 KW 40 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAKE CRANE DUTY MOTOR 37 KW 50 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| CROMPTON MAKE CRANE DUTY MOTOR 45 KW 60 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
