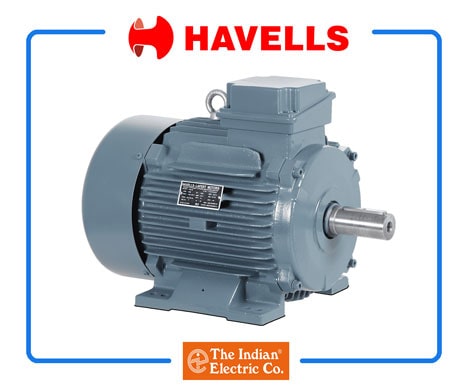

Havells IE3 Motors

Also available in the following specialty

Thermisters
Insulated Bearing
Roller Bearing
Space Heater
Forced cooling
T.B Location: LHS/RHS

Warranty: Motors are covered by warranty under proper use, for faulty material or workmanship for 12 months from the date of commissioning or 18 months from the date of dispatch which ever is earlier.

Features / Specification
( IEC 60034-30-2008 & Dimension as per IS: 1231 & IS 2223 )

Voltage	415 V
Ambient temperature	50 Degree Celsius
RPM/Pole	3000 (2 pole)/1500 (4 pole)/1000 (6 pole)/750 (8 pole)
Standard	IE3
Terminal box location	Top
KW/HP	0.18 - 355 kW/( 0.25-470 HP)
Body enclosure	Cast Iron
Duty	S1
Enclosure	TEFC
Frame size	63 - 355
Frequency	50 Hz
IP degree of protection	IP55
Insulation class	F Class
Mounting	B3 Foot Mounted/B5 Flange Mounted/B35 Foot cum Flange Mounted

DOWNLOAD PDF GET A QUOTE

Application:

Pump, Fan, Compressor, Paper Machinery, Dairy Equipment, Hydraulic press, HVAC, Grinding Machine, Vertical Boring, Milk Pumps, Chilling Plants, Blenders, Pulverize, Condensers, Agitators, Air Compressors, Centrifuges, ID & FD Fans, Cooling Tower, Cold Storages, Plastic Machinery, Machine Tool, Air Conditioning, Textiles Machinery.
